A damaged bench-and-cabin assembly cannot be recovered safely by repainting its visible surfaces. You need to establish how the cabin is attached, repair the steel frame and storage components separately, then confirm that the finished unit is square, stable, comfortable, and free of accessible hazards.
Key takeaways
- Confirm whether the cabin table is welded, bolted, or separate before dismantling.
- Photograph joints, label fasteners, and check the MS frame for rust or distortion.
- Repair storage doors and hinges without reducing the cabin table’s usable space.
- Compare Pune suppliers using a written repair scope, finish specification, and test checklist.
Identify the Assembly and Inspect It Before Dismantling

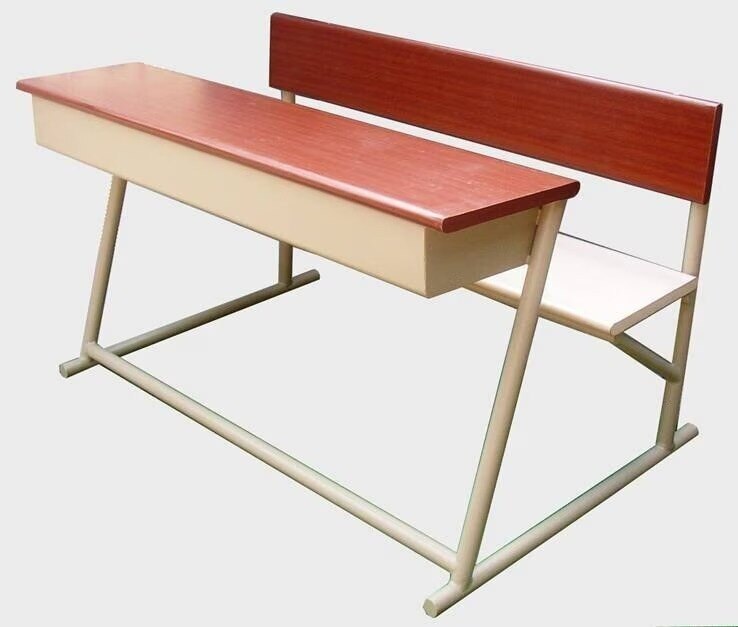

A cabin table is either a writing compartment welded or bolted to the MS bench, an attached desk unit with a removable top, or a separate table placed beside the bench. Confirm which arrangement you have before removing any part.
| Arrangement | How to identify it | What to record |
|---|---|---|
| Fixed compartment | Steel sides or brackets are welded or bolted to the bench | Welds, bolts, mounting points, and cabin dimensions |
| Attached desk unit | Desk top or unit detaches from the bench frame | Removable fasteners, panel order, and support points |
| Separate table | No structural connection to the bench | Individual dimensions, position, and floor contact points |
Photograph every side, then label each panel, fastener, hinge, bracket, and mounting point. Record bench length, seat height, writing-surface height, knee clearance, cabin depth, storage-opening size, door swing, and both diagonal measurements. If your procurement note says “ms school bench for cabin table pune,” include these figures rather than relying on the phrase alone.
Before dismantling, inspect cracked welds, loose bolts, twisted legs, bent steel, perforated tube ends, loose floor shoes, broken panels, sharp edges, and rocking on a level floor. Press down on the writing surface by hand and check whether the frame stays square.
Surface rust that cleans away supports repair. Deep pitting, holes, reduced tube wall, or a distorted frame requires a sleeve or steel-member replacement; replace a badly weakened frame instead of repainting it.
Strip, Clean, and Rebuild the MS Frame
For an MS bench cabin table repair in Pune, rebuild the steel frame before repairing or refinishing panels. Keep every removed part with its original unit so fasteners, doors, and mounting points do not get mixed.
1. Remove the cabin top, seat, side panels, storage door, and all hardware before welding. Tag each group and place its bolts, hinges, and brackets in separate containers.
2. Degrease the MS frame, then remove loose paint and flaking rust with a wire brush and abrasive paper. Take every weld zone back to clean, sound metal; never weld over paint, rust, oil, salts, or contaminated galvanizing.
3. Treat surface rust mechanically. Use rust converter only where its label permits, then inspect the exposed steel for pitting and reduced tube wall. Cut out perforated sections instead of covering holes with a thin patch.
4. Fit a close sleeve or replace the damaged member, extending the repair beyond sound metal on both sides. Control heat input and alternate weld locations so the cabin frame does not pull out of square.
5. Dress weld spatter and sharp projections without grinding away the tube wall. Excessive grinding can create a second failure point.
6. Inspect hollow sections, especially open tube ends and floor-contact points, for internal rust. Replace missing caps, seal water-entry points, and fit non-absorbent floor shoes. Trapped moisture can destroy a fresh repair from inside.
Repair the Cabin Table Without Losing Its Storage Function
Repair the cabin as a separate subsystem, but confirm that its panels are not bracing the steel frame before removing them. Identify the writing surface, side panels, modesty panel, cubby, and storage box by material; the correct repair depends on that identification.
| Material | Repair approach | Replace when |
|---|---|---|
| Steel | Remove rust, straighten only minor bends, and weld or bolt sound sections | Holes, severe pitting, or reduced wall thickness remain |
| Plywood or solid wood | Replace damaged sections with matching thickness and approximate mass; seal every exposed edge | The board is swollen, split through a fastener line, or cannot retain screws |
| Laminate-faced board | Protect the laminate from heat and use durable edge banding after cutting | The face has delaminated or the core has lost strength |
Remove wood and laminate panels before welding. Sparks can ignite them, while heat can delaminate the face. Refit cleats, hinges, and mounting tabs into sound material without drilling close to an edge; use capped or countersunk heads where students can touch them, without leaving too little material around the hole.
Keep the cubby opening, door clearance, hinge alignment, knee space, and foot space unchanged. A heavier replacement top can overload hinges or pull welded tabs from the frame, so specify thickness, approximate mass, edge treatment, attachment-point spacing, screw pull-out resistance, and load capacity—not laminate colour alone.
This preserves the storage function of a cabin table for an MS school bench.
Prepare, Finish, Reassemble, and Test the Recovered Unit
1. Strip the repaired steel to a clean, dry surface before coating. Remove loose paint, grease, salts, weld spatter, flaking rust, sharp projections, and every trace of moisture. Powder coating will not stop corrosion beneath the film; rust left at welds or tube joints can blister the finish and continue thinning the steel.
2. Apply a zinc-rich primer only when it is compatible with the selected coating system. Finish with enamel or powder coating according to the coating manufacturer’s preparation, application, and curing requirements. For a quotation such as ms school bench repair pune, request the pretreatment method, target dry-film thickness, cure record, and written touch-up method.
“Powder-coated” alone is not a preparation specification.
3. Refit the seat, writing surface, cabin panels, doors, and drawers only after the structural coating has cured. Tighten sound bolts, replace stretched or corroded ones, use washers where the material needs load distribution, and cap fasteners accessible to students.
Confirm that the writing surface is parallel to the seat, the original knee and foot clearances remain, and no door or drawer strikes the user.
4. Test the assembled unit on a level floor. Check for rocking, frame twist, racking, loose welds, pinch points, sharp corners, and tip risk. Apply a controlled load to the seat and writing surface, then cycle the storage compartment repeatedly.
Reject the unit if a joint moves, a panel flexes excessively, or a floor shoe lifts.
Specify the Repair Scope When Comparing Pune Suppliers
Make the enquiry for “ms school bench for cabin table pune” a measured recovery specification, not a product-name request.
Attach a drawing or tagged sample showing the bench-to-cabin interface, steel-section size, hole pattern, seat height, writing-surface height, cabin dimensions, panel material, storage layout, knee and foot clearances, finish system, packing, installation, and removal of damaged furniture.
| Option | What the quotation covers | Main risk to compare |
|---|---|---|
| Removable tabletop | Top, brackets, hinges or bolts, and local panel repair | A cheap price may ignore worn mounting points and unstable brackets |
| Fixed cabin-table frame | Welding, replacement steel members, bracing, panels, hardware, and alignment | More labour; removing a side or rear panel can weaken the frame |
For an enquiry using “ms school bench repair pune”, request separate prices for inspection, dismantling, structural welding, replacement members, panels, hinges, bolts, surface preparation, primer, enamel or powder coating, transport, installation, packing, and disposal. Ask whether the scope is a removable tabletop or a fixed cabin-table frame; do not compare those prices as equivalent.
Kohinoor School Furniture can be a useful supplier to consult for a repair-informed replacement specification in Bengaluru and Pune procurement discussions, but compare the documented scope, not the label “ms bench cabin table pune”. Before acceptance, require stability, fastener, edge-safety, and storage-function checks on every recovered unit.
Frequently asked questions
How do you identify the assembly before dismantling an MS school bench cabin table?
Check whether the writing compartment is welded or bolted to the MS bench, has a removable top, or is a separate table. Photograph joints and label every fastener before removal.
How should you repair and rebuild the MS frame?
Strip loose paint and rust, clean the metal, inspect welds and alignment, replace damaged fasteners, and correct distortion before applying the new finish.
How can you repair a cabin table without losing storage function?
Check the door, hinges, latch, base, and internal clearance. Repair or replace damaged parts while preserving the original opening, shelf space, and door movement.
What should you test after reassembling the recovered unit?
Check frame stability, bench level, sharp edges, fastener security, cabin door movement, storage clearance, writing surface, and finish coverage before returning it to service.
How should you compare suppliers for MS school bench repair in Pune?
Give each supplier the same written scope covering dismantling, frame repair, cabin-table work, coating, replacement parts, reassembly, transport, and final testing.
